High Security Switch Lock
Details

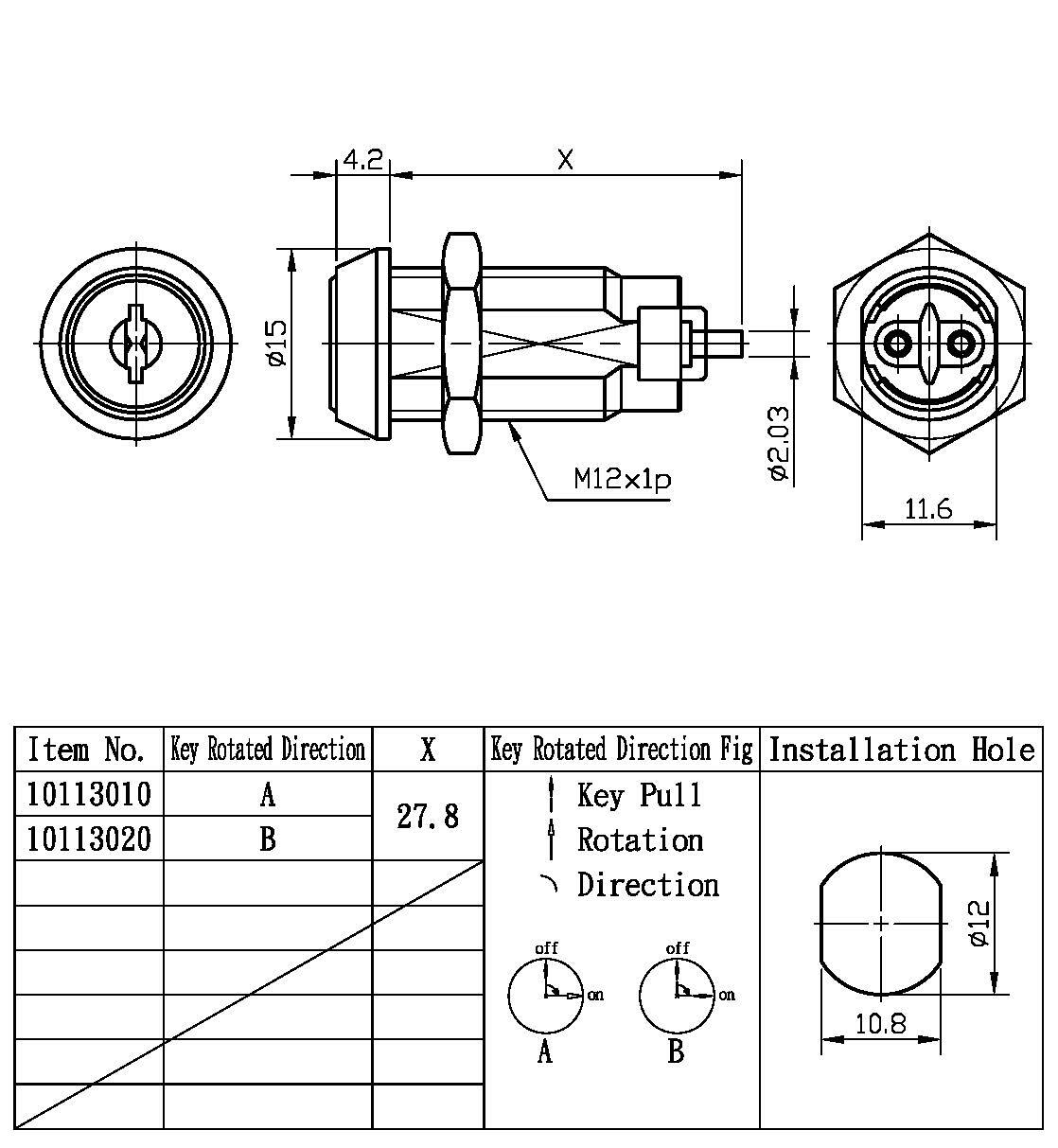

The 101130 high-security switch lock (known as a security system lock, computer housing lock, and ticket vendor lock) is designed to secure a wide range of equipment, including but not limited to security systems, alarm systems, computer housings, telephones, ticket vendors, etc.
Specifications
- Current Rating: 2A 125VAC, 1A 250VAC.
- Contact Resistance: 10 Mill-Ohms Max..
- Insulation Resistance: 500 Meg-Ohms Min..
- Dielectric Strength: 1000VAC 1 minute.
Features
- Top security PAGODA cylinder (miniature) key switch lock system.
- Material: zinc alloy.
- Contact silver-plated and terminal.
- 100 combinations.
Maximum Security Key Switch for Critical System Control
Imagine a Data Center or a High-Value Laboratory where the activation of a backup generator or a sensitive control system requires an absolute guarantee of authorized entry. A standard switch is vulnerable, but the ABA 101130 High Security Switch Lock provides the ultimate Locking Solution. As a specialized Lock Manufacturer, we have engineered this Electric Key Switch with a pick-resistant High-Security Cylinder and a reinforced Zinc Alloy housing, ensuring unmatched Mechanical Reliability and resistance to tampering.
The 101130 Model is an essential Security Component for Access Control Panels, Banking Terminals, and Critical Infrastructure. It allows for sophisticated Power Management and Circuit Control, ensuring that only specialized key holders can perform critical operations. For our OEM/ODM partners, ABA provides various Keying Options and diverse Contact Configurations to meet the most demanding industrial standards. Trust ABA’s Precision Engineering to deliver a robust Switch Lock that prioritizes absolute Asset Protection and operational integrity.
