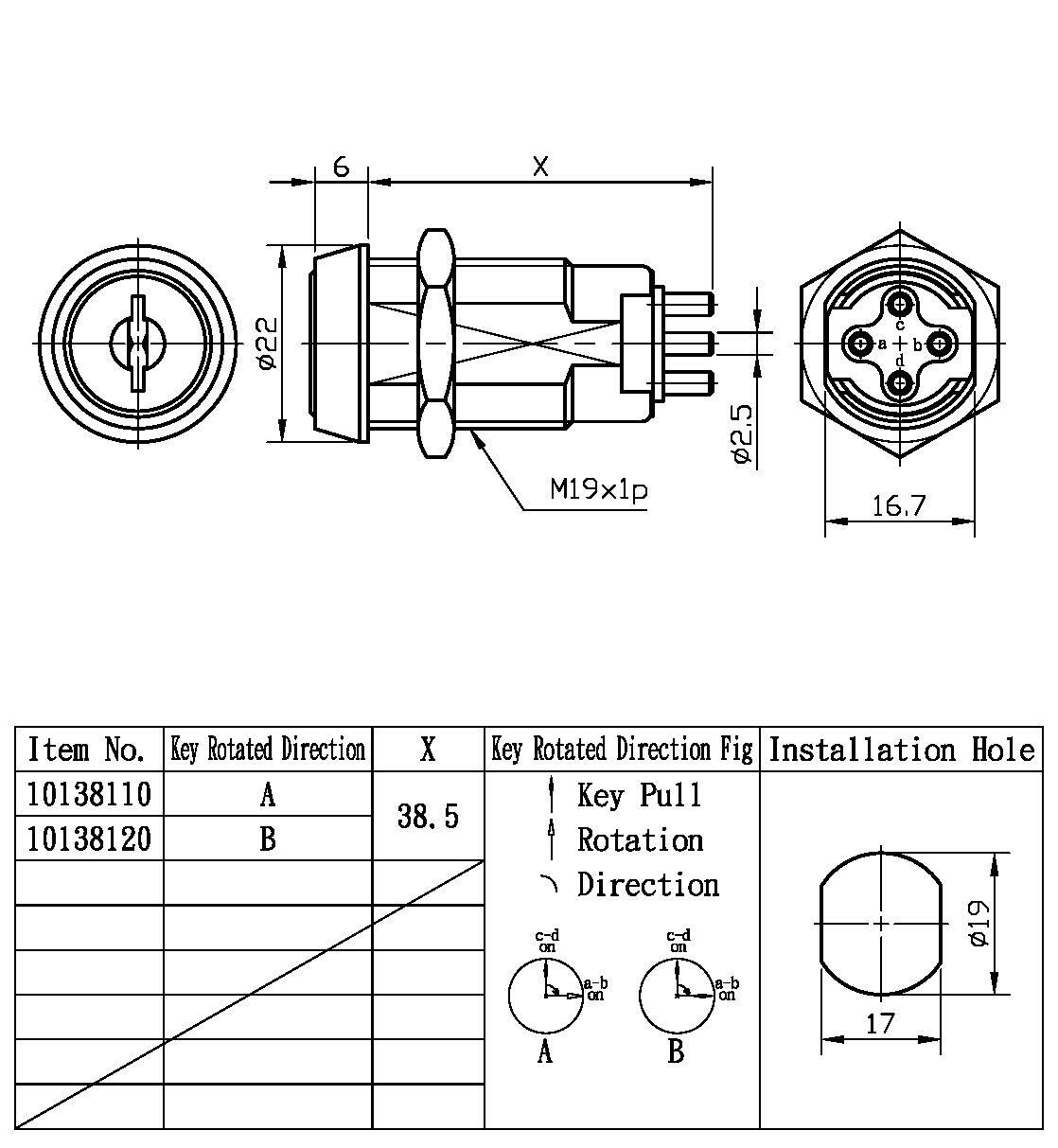

Key Switch Lock
Top security PAGODA system
Zinc alloy housing and cylinder
Silver plated contacts and terminals
Our vending machine locks, alarm system locks, and computer server locks are designed to secure a wide range of applications, including but not limited to garage doors, alarm system, computer server, electronic instrument, vending machine, control boxes, electronic boxes, etc.
Over 10000 combinations
SPECIFICATIONS:
Current Rating: 4A /125VAC, 2A/250VAC
Contact Resistance: 10 Mill-Ohms Max
Insulation Resistance: 500 Meg-Ohm Min (500VDC)
Dielectric Strength: 1500 VAC-1 Minute
High-Security Key Switch for Critical Circuit Control
Imagine an Industrial Automation Line or a High-End Security System where turning the power on or off requires more than just a simple toggle. You need a verified physical authorization to prevent catastrophic errors. The ABA 101381 Key Switch Lock is the premium Locking Solution for these high-stakes environments. As a professional Lock Manufacturer, we have integrated a high-security Keyed Lock Mechanism with an electrical switch, featuring a robust Zinc Alloy housing and high-performance Brass Contacts to ensure long-term Mechanical Reliability.
The 101381 Model is an essential Security Component for Access Control Panels, ATM Machines, and Medical Instrumentation. It provides precise Power Management, ensuring that only authorized key holders can execute critical Circuit Switching. For our OEM/ODM partners, ABA offers various Keying Options, including Key Retaining and non-retaining designs, along with multiple Electrical Ratings. Trust ABA’s Precision Engineering to deliver a dependable Electric Key Switch that prioritizes both operational safety and industrial Durability.
RELATED PRODUCT
Key Switch
Top security PAGODA system
Zinc alloy housing and cylinder
Silver plated contacts and terminals
Our garage doors locks, electronic instrument locks, and computer server locks are designed to secure a wide range of applications, including but not limited to garage doors, alarm, computer server, electronic instrument, vending machine, control boxes, electronic boxes, etc.
Over 10000 combinations
SPECIFICATIONS:
Current Rating: 4A /125VAC, 2A/250VAC
Contact Resistance: 10 Mill-Ohms Max
Insulation Resistance: 500 Meg-Ohm Min (500VDC)
Dielectric Strength: 1500 VAC-1 Minute
ATM Machine Switch Lock
Details
The 101382 ATM machine switch lock (known as a garage door lock, electronic instrument lock, or computer server lock) is designed to secure a wide range of equipment, including but not limited to garage doors, alarm systems, computer servers, electronic instruments, vending machines, control boxes, electronic boxes, etc.
Specifications
- Current Rating: 4A /125VAC, 2A/250VAC.
- Contact Resistance: 10 Mill-Ohms Max.
- Insulation Resistance: 500 Meg-Ohm Min (500VDC).
- Dielectric Strength: 1500 VAC-1 Minute.
Features
- Top security PAGODA cylinder key switch lock system.
- Zinc alloy housing and cylinder.
- Silver-plated contacts and terminals.
- Over 10000 combinations.
Vending Machine Switch Lock
Details
The 101384 vending machine switch lock (known as an alarm system lock, and computer server lock) is designed to secure a wide range of equipment, including but not limited to garage doors, alarm systems, computer servers, electronic instruments, vending machines, control boxes, electronic boxes, etc.
Specifications
- Current Rating: 4A /125VAC, 2A/250VAC.
- Contact Resistance: 10 Mill-Ohms Max.
- Insulation Resistance: 500 Meg-Ohm Min (500VDC).
- Dielectric Strength: 1500 VAC-1 Minute.
Features
- Top security PAGODA system.
- Zinc alloy housing and cylinder.
- Silver-plated contacts and terminals.
- Over 10000 combinations.
