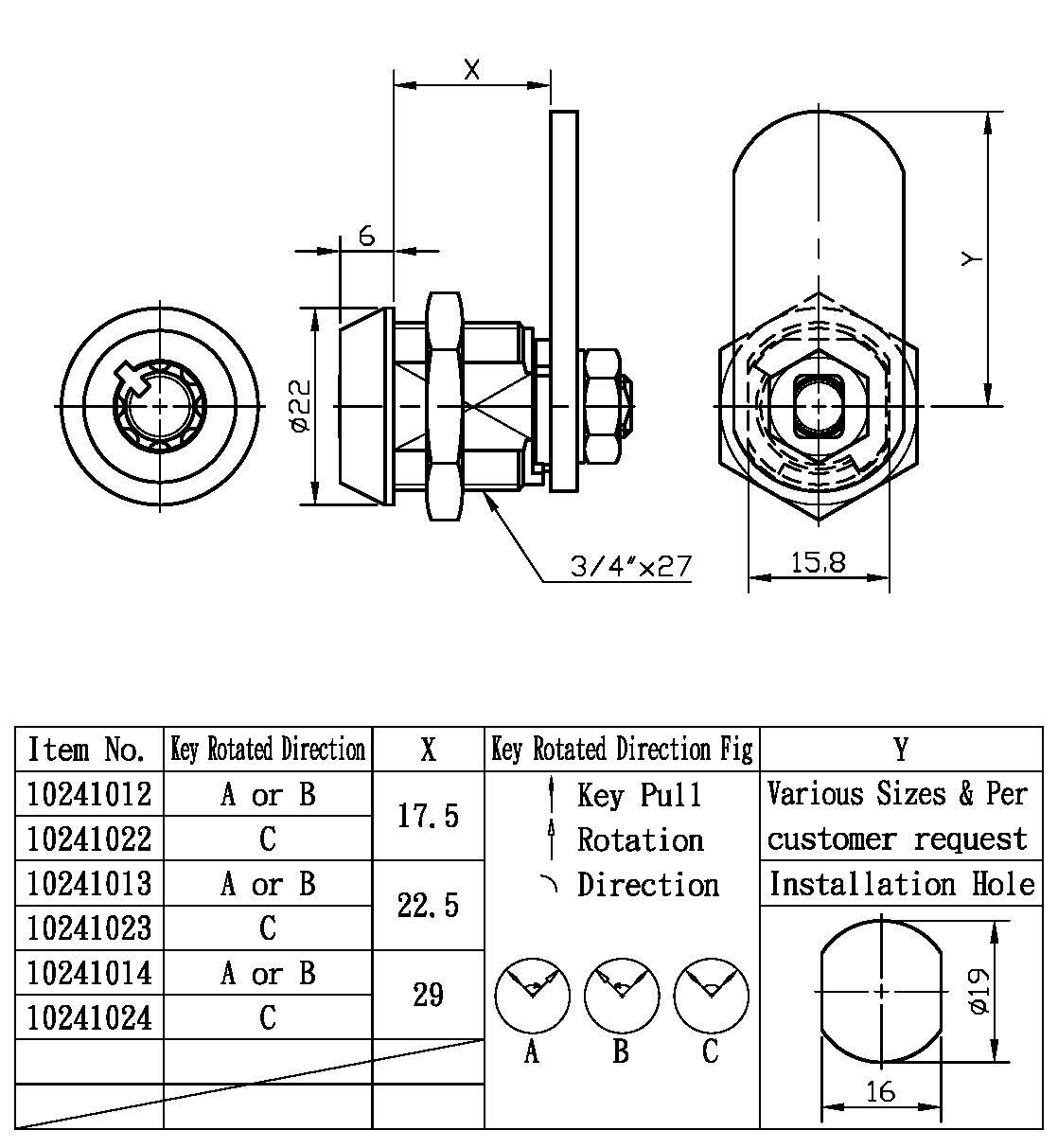

102410

Top Security Tubular Cam Lock



1. Specially designed tubular key
2. Top security ABACO system
3. Housing & barrel with brass or zinc alloy
4. Our tooling box locks, drawer locks, andcabinet locks are designed to secure a wide range of applications, including but not limited to metal and non metal, wooden door, cabinets, boxes, drawers, tooling Box, amusement machine, vending machine.
5. Over 10000 Key combinations
6. Accessory: nut & cam (cam "A" per customer request, as for reference)

Engineered Security for Critical Infrastructure

Imagine a high-security Data Center or a network of Automated Teller Machines (ATMs) where every access point must be fortified against sophisticated intrusion. Standard cam locks are insufficient for such high-stakes environments. The ABA 102410 Top Security Tubular Cam Lock is designed precisely for these critical scenarios. As a premier Lock Manufacturer, we have integrated a high-precision 7-Pin Tubular mechanism into this model, providing exceptional resistance against Anti-Picking and unauthorized key duplication.

Crafted from heavy-duty Zinc Alloy with a hardened face for Anti-Drilling protection, the 102410 Model ensures long-term Mechanical Reliability even in high-frequency use. It is the definitive Security Component for Gaming Machines, High-Value Vending Units, and Industrial Control Panels. For our OEM/ODM partners, the 102410 offers a flexible Master Key System and customizable Cam Configurations, delivering a comprehensive High-Security Locking solution that maximizes Asset Protection while simplifying facility management. Trust ABA’s Precision Engineering to safeguard your most sensitive investments.

RELATED PRODUCT

Miniature High Safety Cam Lock

Miniature High Safety Cam Lock

Details

  • Top security PAGODA system
  • Zinc alloy housing & barrel
  • Our tooling box locks, drawer locks, door locks, and cabinet locks are designed to secure a wide range of applications, including but not limited to metal and non-metal wooden doors, cabinets, boxes, tooling boxes, and drawers.
  • 500 key combinations
  • Accessory: nut & cam (cam "A" per customer request, as for reference)
Vending Machine Lock

Vending Machine Lock


1. The end barrel without screw
2. Housing & barrel with zinc alloy
3. Our locker locks, amusement machine locks, and vending machine locks are designed to secure a wide range of applications, including but not limited to metal and non metal, wooden door, cabinets, boxes, lockers, tooling box, drawers, amusement machine, vending machine.
4. 10000 Key combinations
102446 charging pile lock

Charging Pile Lock

Details

The 102446 charging pile lock (known as locker lock, amusement machine lock, and vending machine lock) is designed to secure a wide range of equipment, including but not limited to metal and wooden cabinets, storage, drawers, furniture, museum display cabinets, machines and equipment, gun cabinets, and control cabinets.

Features

  • Φ19.
  • Zinc alloy housing & barrel.
  • Over 3,000 key combinations.
  • Accessory: Nut & Cam (Various specs cams depend on customization or refer to accessories).
  • Each lock has 1pc regular key and 1pc control key.
  • The control key has idling only, and the regular key for locking/unlocking.
  • The regular key is unworkable when the control key is inserted into the lock and turned to the 5:00 position (135 degrees).
  • The control key returns the lock position to 12:00, then the regular key resumes the opening function.
103499 dustproof cam lock

Dustproof Cam Lock

Details

The 103499 dustproof cam lock (known as switch gear box lock, gaming machine lock, coin operated machine lock) is designed to secure a wide range of equipment, including but not limited to metal and wooden cabinets, lockers, machines and equipment, tooling boxes, sports equipment, switch gear box, gaming machine, coin operated machine.

Features

  • Φ19.
  • Superior wafer lock.
  • Housing & Barrel made of Zinc Alloy.
  • Over 150 Key combinations or key alike.
  • Accessory: nut & cam (cam "A" upon customer request).
Flat Key Wafter Cam Lock

Flat Key Wafter Cam Lock

Details

The 103496 flat key wafter cam lock (known as public pay phone lock, scroll door lock, and server cabinet lock) is designed to secure a wide range of equipment, including but not limited to metal and non-metal, wooden doors, cabinets, boxes, tooling boxes, drawers, furniture, public pay phones, scroll doors, and server cabinets.

Features

  • Φ19.
  • Housing & barrel with zinc alloy.
  • Over 200 Key combinations.
  • Accessory: Nut & cam (cam "A" upon customer request).
ARV-C004 waterproof cam lock

Water Proof Cam Lock (IP65)

Details

The ARV-C004 waterproof cam lock (also known as a cabinet lock, furniture lock, or vending machine lock) is designed for a wide range of equipment. They are used for securing terminal equipment, electronic, metal, wooden cabinets, pay phones, underground strobes, ATMs, enclosures, standers, kiosks, vending/game machines, safety boxes, lockers, letter boxes, postal boxes, coffers, AD showcases, coin-ops, vehicles, mail boxes & tool boxes, furniture, and more.

Features

  • Φ19.
  • IP65 Water Proof.

Materials

  • Zinc Alloy.

We are an IP65 Cam Lock Manufacturer: Cam Locks with Dust Shutters, for Locker, Ad Showcase, Coin-op, Vehicle, Mail & Tools Box, Furniture, etc.
