Casino Key Switch Lock
Details

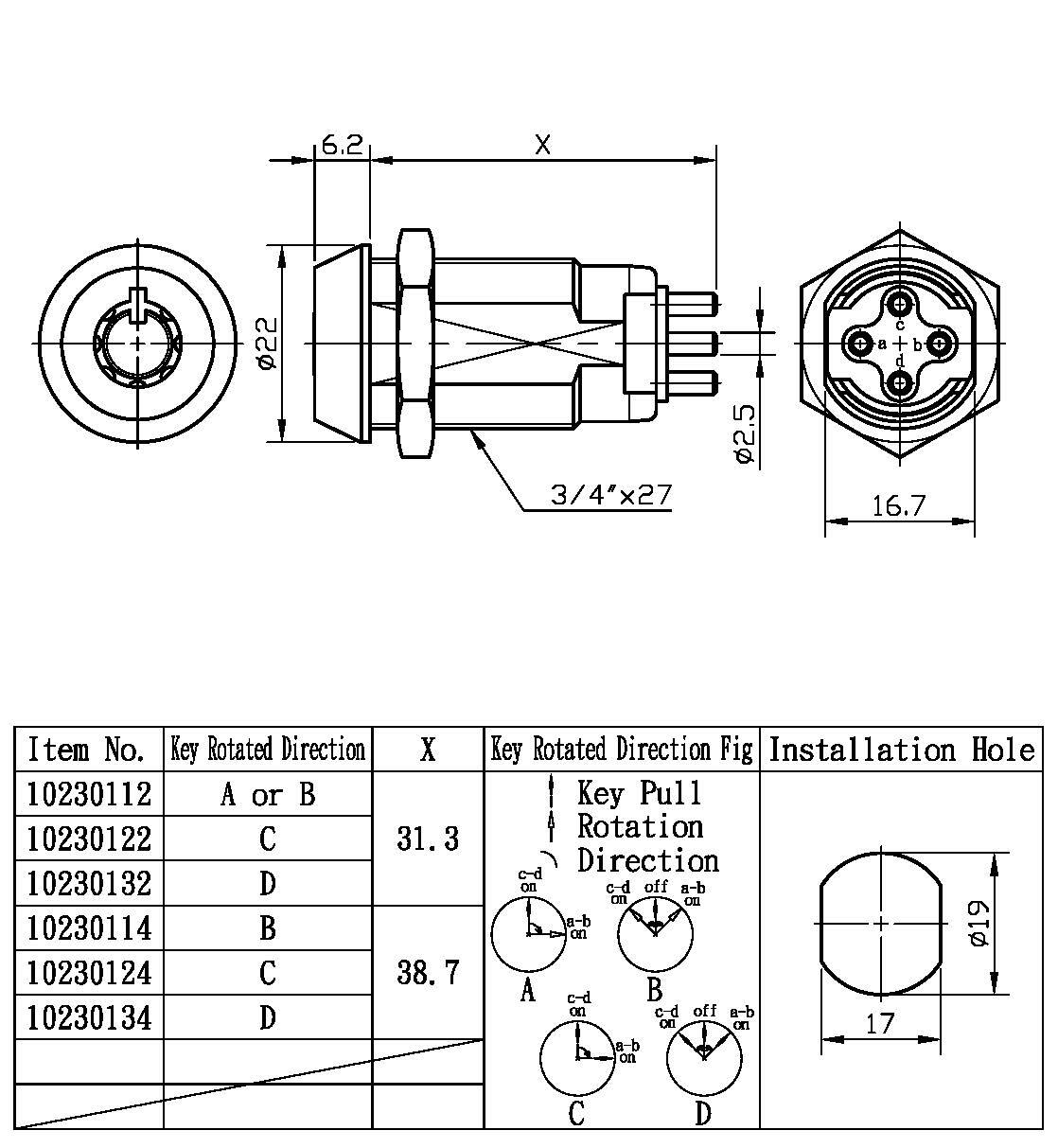

The 102301 casino key switch lock (known as a computer case lock, charging meter lock, or casino machine lock) is designed to secure a wide range of equipment, including but not limited to garage doors, alarm systems, computer cases, charging meters, vending machines, control boxes, electric instruments, security systems, casino machines, etc.
Features
- Housing with brass or zinc alloy.
- Silver-plated contacts and terminals.
- Over 10000 combinations.
Spqcifications
- Current Rating: 4A /125VAC, 2A/250VAC.
- Contact Resistance: 10 Milli-Ohms Max.
- Insulation Resistance: 500 Meg-Ohm Min. (500VDC).
- Dielectric Strength: 1500 VAC-1 Minute.
High-Security Casino Switch for Premium Gaming Terminals
Imagine the fast-paced environment of a World-Class Casino where Electronic Gaming Machines (EGM) and High-Stakes Slot Machines operate 24/7. Managing these assets requires frequent access for cash clearance and software audits, making security a top priority. The ABA 102301 Casino Key Switch Lock is the definitive Locking Solution for this industry. As a leading Lock Manufacturer, we have engineered this Electric Key Switch with a heavy-duty Zinc Alloy body and a high-precision cylinder, ensuring exceptional Mechanical Reliability and resistance to picking.
The 102301 Model is an indispensable Security Component for Casino Hardware, Multi-Game Terminals, and Currency Validators. It provides reliable Circuit Control and Power Management, allowing technicians to switch between secure modes safely. For our OEM/ODM partners, ABA offers specialized Keying Options and customizable Cam Configurations to meet the stringent regulatory standards of the global gaming market. Trust ABA’s Precision Engineering to deliver the Asset Protection and durable performance required for your most valuable gaming infrastructure.
Related Video
RELATED PRODUCT
Gaming Key Switch Lock
The 102300 gaming key switch lock (know as a computer server lock, charging meter lock, or amusement machine lock) is designed to secure a wide range of equipment, including but not limited to garage doors, alarm systems, computer servers, charging meters, vending machines, control boxes, electric instruments, amusement machines, etc.
Features
- Housing with brass or zinc alloy.
- Silver-plated contacts and terminals.
- Over 10000 combinations.
Specifications
- Current Rating: 4A /125VAC, 2A/250VAC.
- Contact Resistance: 10 Milli-Ohms Max.
- Insulation Resistance: 500 Meg-Ohm Min (500VDC).
- Dielectric Strength: 1500 VAC-1 Minute.
Slot Machine Key Switch
Brass or zinc alloy housing
Contact & terminal silver, plated
Our vending machine locks, electric instrument locks, and slot machine locks are designed to secure a wide range of applications, including but not limited to garage doors, alarm system, computer case, charging meter, vending machine, control boxes, electric instrument, security system, slot machine, etc.
10000 combinations
SPECIFICATION:
Current Rating: 4A 125VAC, 2A 250VAC
Contact Resistance: 10 Mill-Ohms Max.
Insulation Resistance: 500 Meg-Ohms Min
Dielectric Strength: 1500VAC 1 minute
Elevator Key Switch
Housing with zinc alloy
Silver plated contacts and terminals
Our lift locks, elevators locks, and security system locks are designed to secure a wide range of applications, including but not limited to garage doors, alarm system, computer case, charging meter, vending machine, control boxes, electric instrument, security system, elevator, lift, etc.
Over 10000 combination
SPECIFICATIONS:
Current Rating: 4A /125VAC, 2A/250VAC
Contact Resistance: 10 Milli-Ohms Max
Insulation Resistance: 500 Meg-Ohm Min (500VDC)
Dielectric Strength: 1500 VAC-1 Minute
Amusement Key Switch
Zinc alloy housing & barrel
Contact silver plated , brass terminal
Our computer server locks, charging meter locks, and amusement machine locks are designed to secure a wide range of applications, including but not limited to garage doors, alarm system, computer server, charging meter, vending machine, control boxes, electric instrument, amusement machine, etc.
10000 combinations
SPECIFICATION:
Current Rating: 4A 125VAC, 2A 250VAC
Contact Resistance: 10 Milli-Ohms Max.
Insulation Resistance: 500 Meg-Ohms minDielectric Strength: 1500VAC 1 minute
