102320

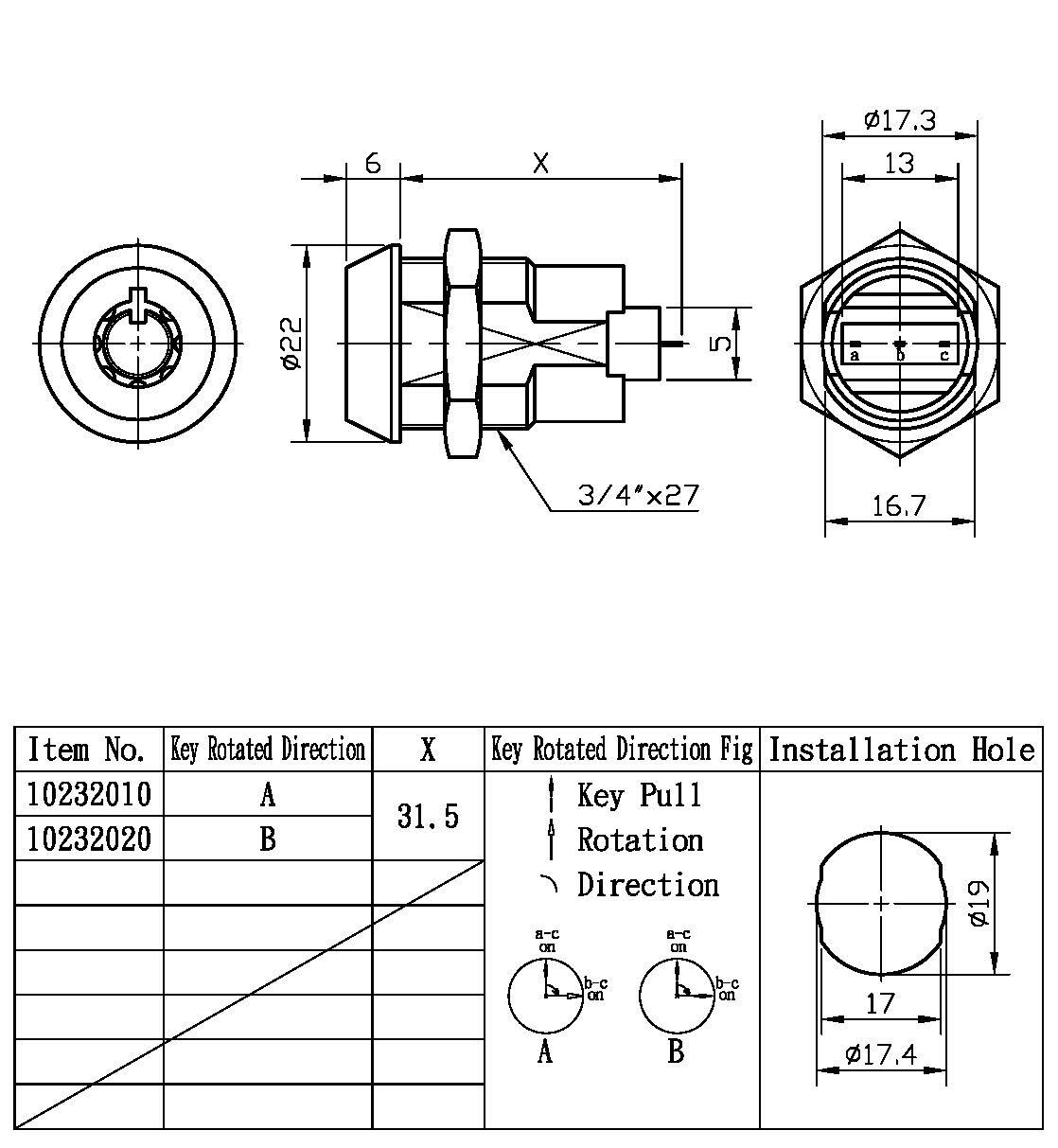

Elevator Key Switch
DESCRIPTIONS:
Housing with zinc alloy
Silver plated contacts and terminals
Our lift locks, elevators locks, and security system locks are designed to secure a wide range of applications, including but not limited to garage doors, alarm system, computer case, charging meter, vending machine, control boxes, electric instrument, security system, elevator, lift, etc.
Over 10000 combination
SPECIFICATIONS:
Current Rating: 4A /125VAC, 2A/250VAC
Contact Resistance: 10 Milli-Ohms Max
Insulation Resistance: 500 Meg-Ohm Min (500VDC)
Dielectric Strength: 1500 VAC-1 Minute
Housing with zinc alloy
Silver plated contacts and terminals
Our lift locks, elevators locks, and security system locks are designed to secure a wide range of applications, including but not limited to garage doors, alarm system, computer case, charging meter, vending machine, control boxes, electric instrument, security system, elevator, lift, etc.
Over 10000 combination
SPECIFICATIONS:
Current Rating: 4A /125VAC, 2A/250VAC
Contact Resistance: 10 Milli-Ohms Max
Insulation Resistance: 500 Meg-Ohm Min (500VDC)
Dielectric Strength: 1500 VAC-1 Minute
