102300

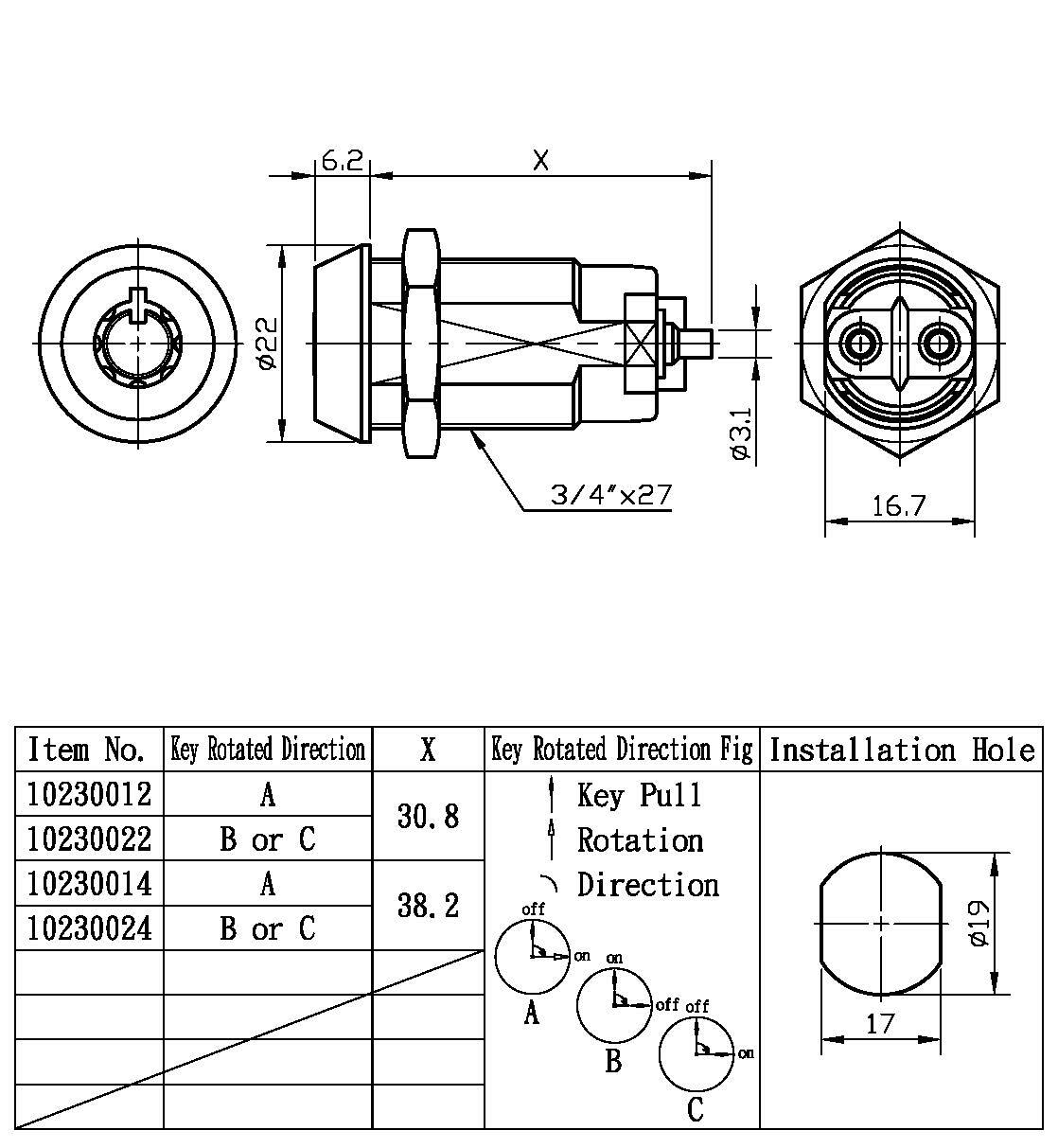

Gaming Key Switch Lock
DESCRIPTIONS:
Housing with brass or zinc alloy
Silver plated contacts and terminals
Our computer server locks, charging meter locks, and amusement machine locks are designed to secure a wide range of applications, including but not limited to garage doors, alarm system, computer server, charging meter, vending machine, control boxes, electric instrument, amusement machine, etc.
Over 10000 combinations
SPECIFICATIONS:
Current Rating: 4A /125VAC, 2A/250VAC
Contact Resistance: 10 Milli-Ohms Max
Insulation Resistance: 500 Meg-Ohm Min (500VDC)
Dielectric Strength: 1500 VAC-1 Minute
Housing with brass or zinc alloy
Silver plated contacts and terminals
Our computer server locks, charging meter locks, and amusement machine locks are designed to secure a wide range of applications, including but not limited to garage doors, alarm system, computer server, charging meter, vending machine, control boxes, electric instrument, amusement machine, etc.
Over 10000 combinations
SPECIFICATIONS:
Current Rating: 4A /125VAC, 2A/250VAC
Contact Resistance: 10 Milli-Ohms Max
Insulation Resistance: 500 Meg-Ohm Min (500VDC)
Dielectric Strength: 1500 VAC-1 Minute
RELATED PRODUCT
Casino Key Switch Lock
DESCRIPTIONS:
Housing with brass or zinc alloy
Silver plated contacts and terminals
Our computer case locks, charging meter locks, and casino machine locks are designed to secure a wide range of applications, including but not limited to garage doors, alarm system, computer case, charging meter, vending machine, control boxes, electric instrument, security system, casino machine, etc.
Over 10000 combinations
SPECIFICATIONS:
Current Rating: 4A /125VAC, 2A/250VAC
Contact Resistance: 10 Milli-Ohms Max
Insulation Resistance: 500 Meg-Ohm Min (500VDC)
Dielectric Strength: 1500 VAC-1 Minute
Housing with brass or zinc alloy
Silver plated contacts and terminals
Our computer case locks, charging meter locks, and casino machine locks are designed to secure a wide range of applications, including but not limited to garage doors, alarm system, computer case, charging meter, vending machine, control boxes, electric instrument, security system, casino machine, etc.
Over 10000 combinations
SPECIFICATIONS:
Current Rating: 4A /125VAC, 2A/250VAC
Contact Resistance: 10 Milli-Ohms Max
Insulation Resistance: 500 Meg-Ohm Min (500VDC)
Dielectric Strength: 1500 VAC-1 Minute
Slot Machine Key Switch
DESCRIPTION:
Brass or zinc alloy housing
Contact & terminal silver, plated
Our vending machine locks, electric instrument locks, and slot machine locks are designed to secure a wide range of applications, including but not limited to garage doors, alarm system, computer case, charging meter, vending machine, control boxes, electric instrument, security system, slot machine, etc.
10000 combinations
SPECIFICATION:
Current Rating: 4A 125VAC, 2A 250VAC
Contact Resistance: 10 Mill-Ohms Max.
Insulation Resistance: 500 Meg-Ohms Min
Dielectric Strength: 1500VAC 1 minute
Brass or zinc alloy housing
Contact & terminal silver, plated
Our vending machine locks, electric instrument locks, and slot machine locks are designed to secure a wide range of applications, including but not limited to garage doors, alarm system, computer case, charging meter, vending machine, control boxes, electric instrument, security system, slot machine, etc.
10000 combinations
SPECIFICATION:
Current Rating: 4A 125VAC, 2A 250VAC
Contact Resistance: 10 Mill-Ohms Max.
Insulation Resistance: 500 Meg-Ohms Min
Dielectric Strength: 1500VAC 1 minute
Elevator Key Switch
DESCRIPTIONS:
Housing with zinc alloy
Silver plated contacts and terminals
Our lift locks, elevators locks, and security system locks are designed to secure a wide range of applications, including but not limited to garage doors, alarm system, computer case, charging meter, vending machine, control boxes, electric instrument, security system, elevator, lift, etc.
Over 10000 combination
SPECIFICATIONS:
Current Rating: 4A /125VAC, 2A/250VAC
Contact Resistance: 10 Milli-Ohms Max
Insulation Resistance: 500 Meg-Ohm Min (500VDC)
Dielectric Strength: 1500 VAC-1 Minute
Housing with zinc alloy
Silver plated contacts and terminals
Our lift locks, elevators locks, and security system locks are designed to secure a wide range of applications, including but not limited to garage doors, alarm system, computer case, charging meter, vending machine, control boxes, electric instrument, security system, elevator, lift, etc.
Over 10000 combination
SPECIFICATIONS:
Current Rating: 4A /125VAC, 2A/250VAC
Contact Resistance: 10 Milli-Ohms Max
Insulation Resistance: 500 Meg-Ohm Min (500VDC)
Dielectric Strength: 1500 VAC-1 Minute
Amusement Key Switch
DESCRIPTION:
Zinc alloy housing & barrel
Contact silver plated , brass terminal
Our computer server locks, charging meter locks, and amusement machine locks are designed to secure a wide range of applications, including but not limited to garage doors, alarm system, computer server, charging meter, vending machine, control boxes, electric instrument, amusement machine, etc.
10000 combinations
SPECIFICATION:
Current Rating: 4A 125VAC, 2A 250VAC
Contact Resistance: 10 Milli-Ohms Max.
Insulation Resistance: 500 Meg-Ohms minDielectric Strength: 1500VAC 1 minute
Zinc alloy housing & barrel
Contact silver plated , brass terminal
Our computer server locks, charging meter locks, and amusement machine locks are designed to secure a wide range of applications, including but not limited to garage doors, alarm system, computer server, charging meter, vending machine, control boxes, electric instrument, amusement machine, etc.
10000 combinations
SPECIFICATION:
Current Rating: 4A 125VAC, 2A 250VAC
Contact Resistance: 10 Milli-Ohms Max.
Insulation Resistance: 500 Meg-Ohms minDielectric Strength: 1500VAC 1 minute
