102206

Small Tubular Cam Lock

Details

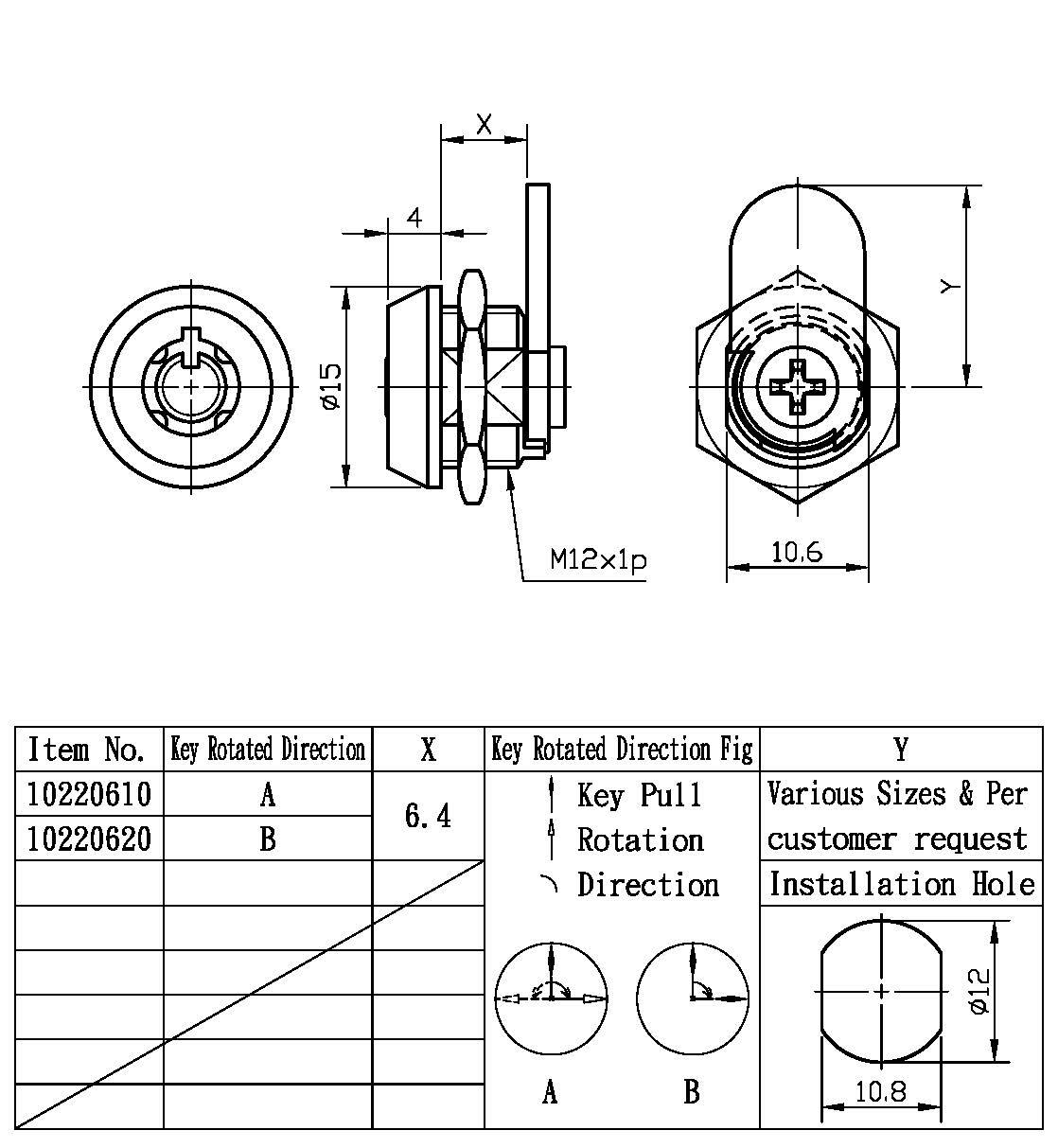

The 102206 small tubular cam lock (known as a change machine lock, coin-operated machine lock, or cash box lock) is designed to secure a wide range of applications, including but not limited to metal and non-metal wooden doors, cabinets, tooling boxes, cash boxes, change machines, coin operated machine, boxes, and drawers.

Features

  • Φ12.
  • The end barrel with a screw.
  • Housing & barrel with brass.
  • 200 Key combinations.
  • Accessory: nut & cam (cam "A" per customer request, as for reference).

The Standard for Precision Small Tubular Cam Locks

Consider the design of a modern Self-Service Kiosk or a sophisticated Medical Cabinet—these units require high-level security within an extremely limited installation depth. The ABA 102206 Small Tubular Cam Lock is specifically engineered for such precision environments. As a premier Lock Manufacturer, we have optimized this Compact Locking Solution with a high-performance Tubular Key System, offering much greater Anti-Theft reliability than standard wafer locks.

Constructed from high-strength Zinc Alloy and finished with polished chrome, the 102206 Model is not only aesthetically pleasing but also built for heavy-duty cycle life. It is the ideal Security Component for Mailboxes, Power Distribution Boxes, and Laboratory Lockers. For our OEM/ODM partners, we provide extensive customization, including different Cam Offsets and Master Keying capabilities, ensuring seamless integration into your existing product lines. Trust ABA’s Precision Engineering to deliver superior Asset Protection in a versatile, miniature package

Related Video

RELATED PRODUCT

101230 money box lock

Money Box Lock

Detailed

  • Φ12.
  • High-security pagoda lock system.
  • Zinc alloy lock case and lock cylinder.
  • Suitable for metal/non-metalmoney boxes, wooden doors, boxes, tool cabinets, containers, drawers, etc.
  • More than 100 number changes.
  • Includes a tongue and nut (the size of the tongue "A" can be provided according to customer requirements, or refer to the attachment).
Small Tubular Lock

Small Tubular Lock

1. The end barrel with screw
2. The end barrel with nut
3. Housing & barrel with brass or zinc alloy
4. Over 500 key combinations or key alike
5. Our pc case locks, control apparatus locks and control cabinet locks are designed to secure a wide range of applications, including but not limited to metal and non metal, wooden door, boxes, cabinets, drawers, tooling box, pc case, control apparatus, control cabinet.
6. Accessory：Nut & Cam (Cam “A” per customer request)
7. Master Key System is available per request
