Charging Pile Lock
Details

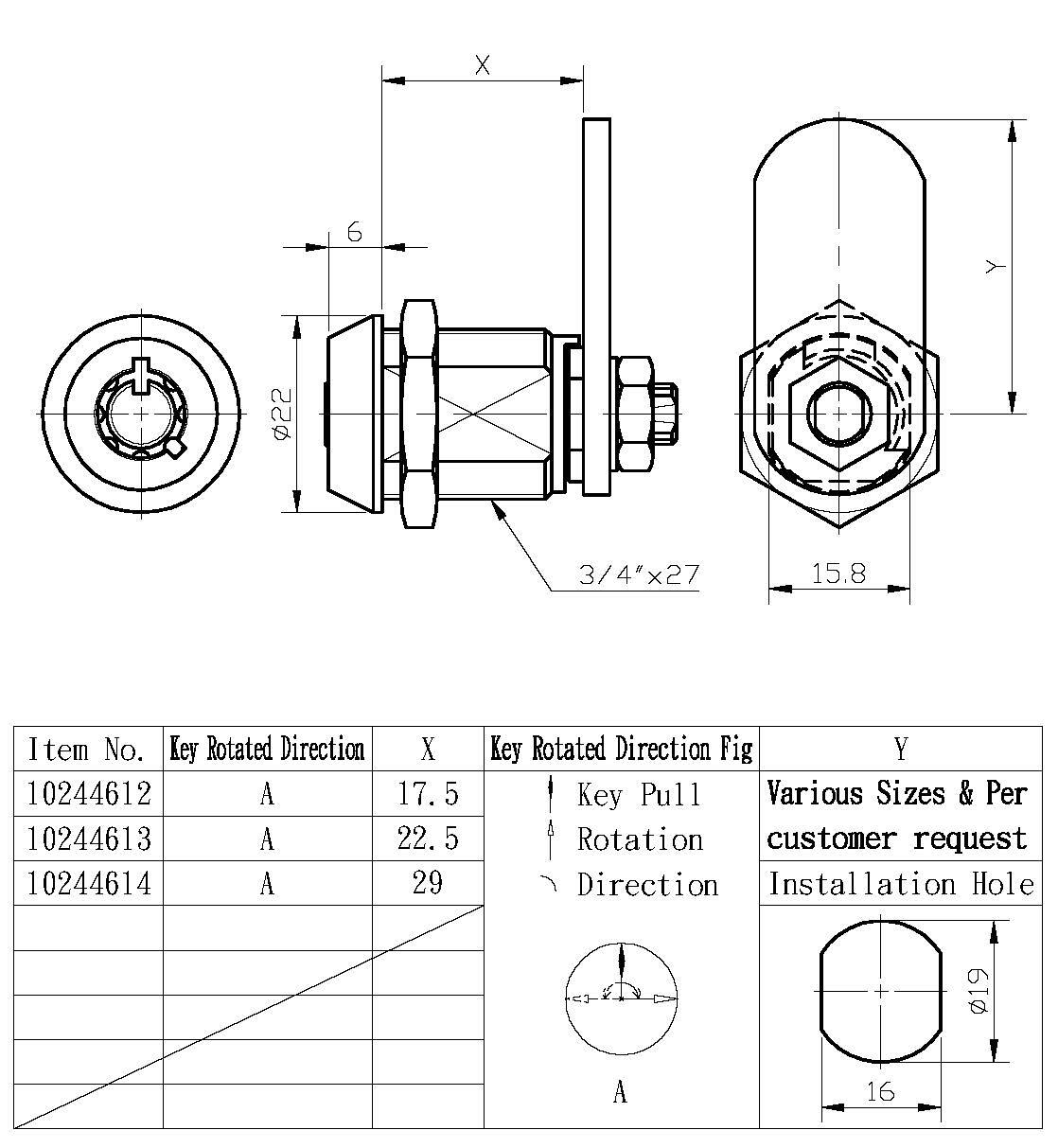

The 102446 charging pile lock (known as locker lock, amusement machine lock, and vending machine lock) is designed to secure a wide range of equipment, including but not limited to metal and wooden cabinets, storage, drawers, furniture, museum display cabinets, machines and equipment, gun cabinets, and control cabinets.
Features
- Φ19.
- Zinc alloy housing & barrel.
- Over 3,000 key combinations.
- Accessory: Nut & Cam (Various specs cams depend on customization or refer to accessories).
- Each lock has 1pc regular key and 1pc control key.
- The control key has idling only, and the regular key for locking/unlocking.
- The regular key is unworkable when the control key is inserted into the lock and turned to the 5:00 position (135 degrees).
- The control key returns the lock position to 12:00, then the regular key resumes the opening function.
Robust Security for the EV Charging Infrastructure
Imagine a suburban parking lot or a highway service station equipped with a fleet of EV Charging Stations. These units are exposed to harsh outdoor elements 24/7 and are potential targets for cable theft or internal component tampering. The ABA 102446 Charging Pile Lock is purpose-built to secure this vital infrastructure. As a specialized Lock Manufacturer, we have engineered this High-Security Cam Lock with a Weatherproof design and a high-precision 7-Pin Tubular mechanism, providing superior Anti-Picking and Anti-Vandalism protection.
Constructed from industrial-grade Zinc Alloy with advanced corrosion-resistant plating, the 102446 Model ensures long-term Mechanical Reliability in extreme temperatures. It is the essential Security Component for Electric Vehicle Supply Equipment (EVSE), Power Distribution Cabinets, and Outdoor Kiosks. For our OEM/ODM partners, we offer customizable Master Key Systems and flexible Cam Configurations, allowing for efficient fleet maintenance while maximizing Asset Protection. Trust ABA’s Precision Engineering to power the future of green energy with uncompromised Locking Solutions.
RELATED PRODUCT
Miniature High Safety Cam Lock
Details
- Top security PAGODA system
- Zinc alloy housing & barrel
- Our tooling box locks, drawer locks, door locks, and cabinet locks are designed to secure a wide range of applications, including but not limited to metal and non-metal wooden doors, cabinets, boxes, tooling boxes, and drawers.
- 500 key combinations
- Accessory: nut & cam (cam "A" per customer request, as for reference)
High Security Quarter Turn Lock
2. Housing & Barrel with Brass Alloy
3. Over 3,000 key combinations based on key in both positions
Over 90,000 key combinations based on key in one position
4. Almost the same spec. as Pagoda Cam Lock 101481, except the lock head is a little bigger
5. The end barrel with nut fitting (Cam is affixed by nut), Cam (various specs is available)
6. Our atm machine locks,gun cabinet locks,cabinet locks are designed to secure a wide range of applications, including but not limited to locker and security boxes, atm machine, metal and wooden cabinet, storage, gun cabinet, drawer, furniture, any cabinet and box.
Mailbox Lock
2. Housing & barrel with zinc alloy
3. Our drawer locks, wooden door locks, furniture locks are designed to secure a wide range of applications, including but not limited to metal and non metal, wooden door, cabinets, mailboxes, tooling box, drawers, furnitures, healthcare cabinets.
4. Over 500 Key combinations or key alike
5. Accessory: nut & cam (cam "A" per customer request, as for reference)
Flat Key Wafter Cam Lock
Details
The 103496 flat key wafter cam lock (known as public pay phone lock, scroll door lock, and server cabinet lock) is designed to secure a wide range of equipment, including but not limited to metal and non-metal, wooden doors, cabinets, boxes, tooling boxes, drawers, furniture, public pay phones, scroll doors, and server cabinets.
Features
- Φ19.
- Housing & barrel with zinc alloy.
- Over 200 Key combinations.
- Accessory: Nut & cam (cam "A" upon customer request).
Disc Detainer Cam Lock Abloy Lock
2. End Barrel with Nut
3. Housing & Barrel made of Brass or Zinc Alloy
4. Over 500 key combinations or key alike
5. Our vault locks, safe locks, locker locks are designed to secure a wide range of applications, including but not limited to metal and wooden cabinet, vault, safe, locker, doors, vending machine, gambling machine, furniture, amusement machine, tooling boxes.
Box, Security Boxes, Machine and Equipment
6. Accessory: Nut & Cam (Cam “A” upon customer request)
Water Proof Cam Lock (IP65)
Details
The ARV-C004 waterproof cam lock (also known as a cabinet lock, furniture lock, or vending machine lock) is designed for a wide range of equipment. They are used for securing terminal equipment, electronic, metal, wooden cabinets, pay phones, underground strobes, ATMs, enclosures, standers, kiosks, vending/game machines, safety boxes, lockers, letter boxes, postal boxes, coffers, AD showcases, coin-ops, vehicles, mail boxes & tool boxes, furniture, and more.
Features
- Φ19.
- IP65 Water Proof.
Materials
- Zinc Alloy.
We are an IP65 Cam Lock Manufacturer: Cam Locks with Dust Shutters, for Locker, Ad Showcase, Coin-op, Vehicle, Mail & Tools Box, Furniture, etc.
