103716

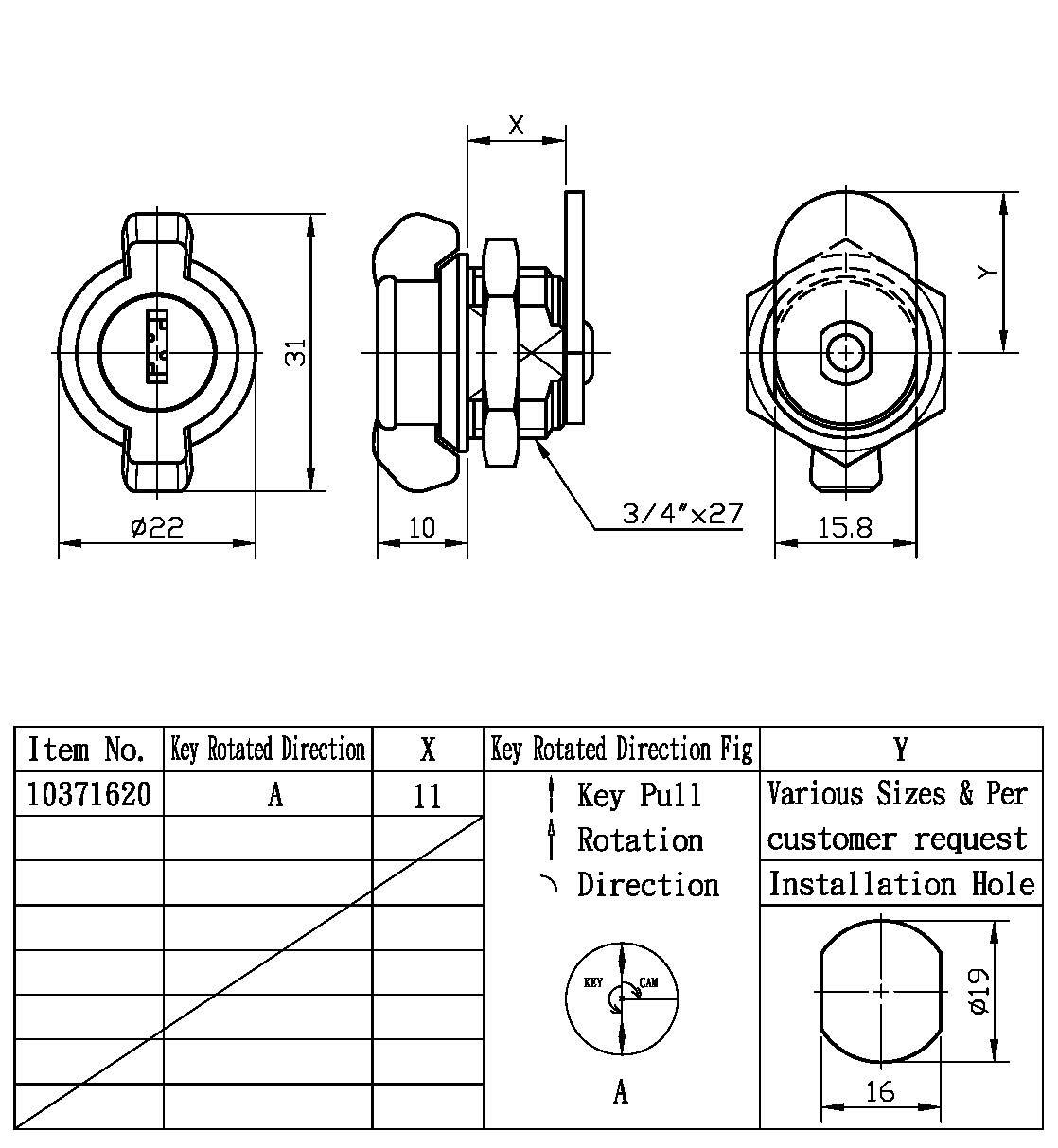

Flat Key Wafer Lock with Handle
Superior wafer lock
Housing & barrel made of zinc alloy
Over 10 Key combinations or key alike
Our vault locks, safe locks, machine and equipment locks are designed to secure a wide range of applications, including but not limited to metal and wooden cabinets, vault and safe, locker, pc case, machine and equipment, vending machine, tooling box.
Accessory: nut & cam (cam "A" upon customer request)
Housing & barrel made of zinc alloy
Over 10 Key combinations or key alike
Our vault locks, safe locks, machine and equipment locks are designed to secure a wide range of applications, including but not limited to metal and wooden cabinets, vault and safe, locker, pc case, machine and equipment, vending machine, tooling box.
Accessory: nut & cam (cam "A" upon customer request)
RELATED PRODUCT
Master Key Cam Lock
1. The end barrel with screw
2. The end barrel with nut
3. Housing & barrel with brass or zinc alloy or SUS 303(optional)
4. Our amusement machine locks, vending machine locks, and cabinet locks are designed to secure a wide range of applications, including but not limited to metal and non metal wooden door, cabinets, boxes, drawers, tooling box, amusement machine, vending machine.
5. 10000 Key combinations
6. Accessory: nut & cam (cam "Y" per customer request, as for reference)
7. Components 「SUS303 material is available for inquiry」
2. The end barrel with nut
3. Housing & barrel with brass or zinc alloy or SUS 303(optional)
4. Our amusement machine locks, vending machine locks, and cabinet locks are designed to secure a wide range of applications, including but not limited to metal and non metal wooden door, cabinets, boxes, drawers, tooling box, amusement machine, vending machine.
5. 10000 Key combinations
6. Accessory: nut & cam (cam "Y" per customer request, as for reference)
7. Components 「SUS303 material is available for inquiry」
Wooden Cabinet Lock
1. The end barrel without screw
2. Housing & barrel with zinc alloy
3. The number can be adjusted whit your request
4. The number will not be able to interchangeable to other key No. after setting up
5. Our door locks, tooling box locks, and cabinet locks are designed to secure a wide range of applications, including but not limited to metal and non metal wooden door, cabinets, boxes, drawers, tooling box, amusement machine, vending machine.
6. This design can be requested for most of item in the catalog
7. With one adjust Key and eight different No. Key
8. Accessory: nut & cam (cam "A" per customer request, as for reference)
2. Housing & barrel with zinc alloy
3. The number can be adjusted whit your request
4. The number will not be able to interchangeable to other key No. after setting up
5. Our door locks, tooling box locks, and cabinet locks are designed to secure a wide range of applications, including but not limited to metal and non metal wooden door, cabinets, boxes, drawers, tooling box, amusement machine, vending machine.
6. This design can be requested for most of item in the catalog
7. With one adjust Key and eight different No. Key
8. Accessory: nut & cam (cam "A" per customer request, as for reference)
Vending Machine Lock
1. The end barrel without screw
2. Housing & barrel with zinc alloy
3. Our locker locks, amusement machine locks, and vending machine locks are designed to secure a wide range of applications, including but not limited to metal and non metal, wooden door, cabinets, boxes, lockers, tooling box, drawers, amusement machine, vending machine.
4. 10000 Key combinations
2. Housing & barrel with zinc alloy
3. Our locker locks, amusement machine locks, and vending machine locks are designed to secure a wide range of applications, including but not limited to metal and non metal, wooden door, cabinets, boxes, lockers, tooling box, drawers, amusement machine, vending machine.
4. 10000 Key combinations
Gumball Machine Lock
1. Housing & barrel with zinc alloy
2. Our gumball machine locks, claw machine locks, and gashapon locks are designed to secure a wide range of applications, including but not limited to metal and non metal wooden door, cabinets, boxes, tooling box, drawers, gashapon machine, claw machine, gumball machine.
3. 10,000 Key combinations
4. Accessory: Nut
2. Our gumball machine locks, claw machine locks, and gashapon locks are designed to secure a wide range of applications, including but not limited to metal and non metal wooden door, cabinets, boxes, tooling box, drawers, gashapon machine, claw machine, gumball machine.
3. 10,000 Key combinations
4. Accessory: Nut
Zinc Alloy Cam Lock
1) Superior wafer lock barrel with flat keys.
2) Housing & barrel with zinc alloy.
3) Outer housing size as ABA existing products #3403 M size.
4) Over 800 key combination.
Our gas marking machine locks, medical cart locks, parking meter locks are designed to secure a wide range of applications, including but not limited to metal and non metal wooden door, cabinets, boxes, tooling box, drawers, marking machine, medical cart, parking meter, pos machine.
Interchangeable Core
Master key system is available
2) Housing & barrel with zinc alloy.
3) Outer housing size as ABA existing products #3403 M size.
4) Over 800 key combination.
Our gas marking machine locks, medical cart locks, parking meter locks are designed to secure a wide range of applications, including but not limited to metal and non metal wooden door, cabinets, boxes, tooling box, drawers, marking machine, medical cart, parking meter, pos machine.
Interchangeable Core
Master key system is available
Single Sided Wafer Lock
1. Material: Zinc alloy
2. Finish: Bright chrome (Custom finishes available upon request)
3. Keying: 5-wafer, single-sided, offering up to 200 key combinations
4. Master Keying: Master key function available
5. Cam Options: Wide range of cam sizes and rotations for customer selection
6. Cam Attachment: Screw-type
7. Mounting: Hex nut or clip
2. Finish: Bright chrome (Custom finishes available upon request)
3. Keying: 5-wafer, single-sided, offering up to 200 key combinations
4. Master Keying: Master key function available
5. Cam Options: Wide range of cam sizes and rotations for customer selection
6. Cam Attachment: Screw-type
7. Mounting: Hex nut or clip
