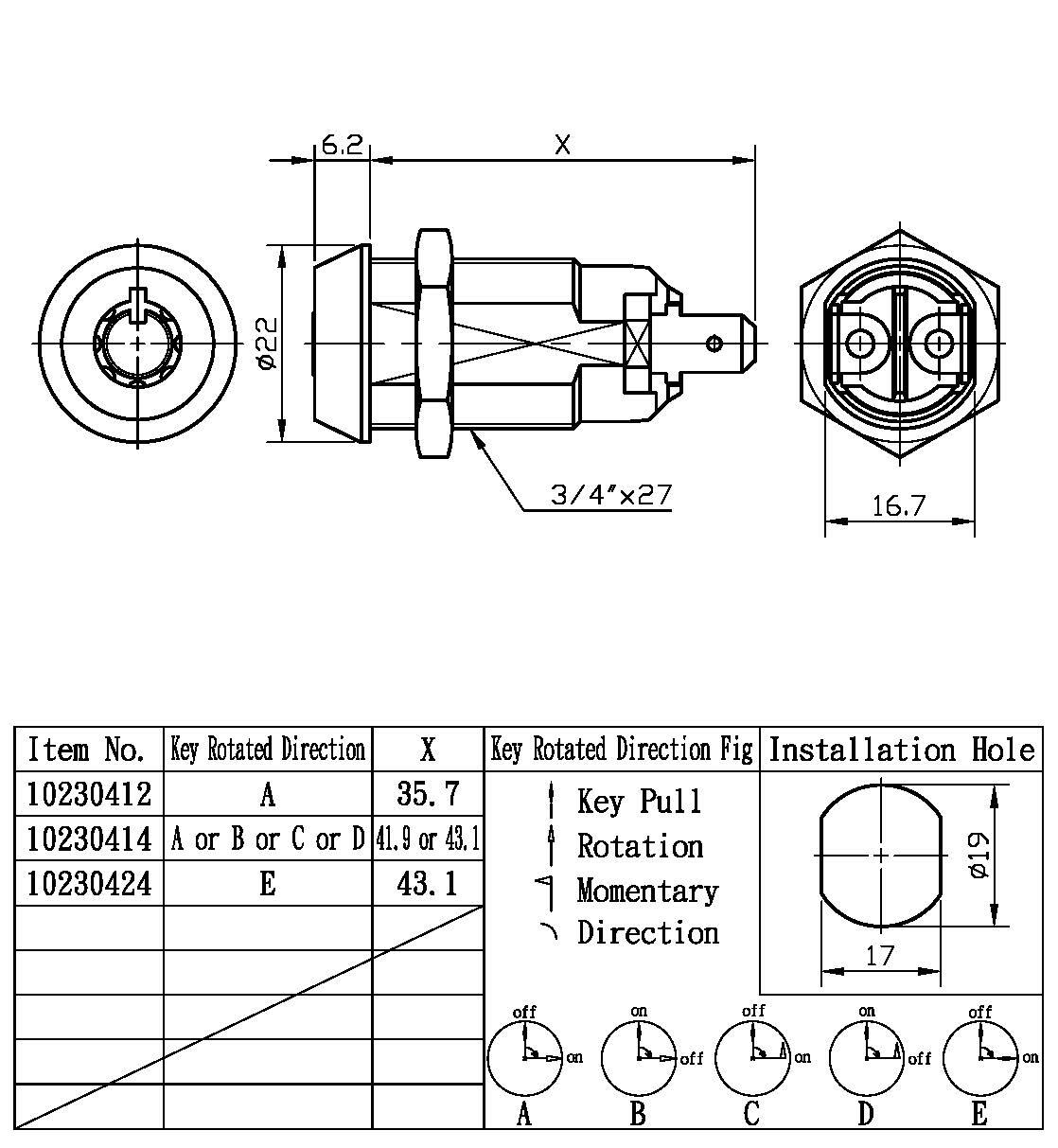

Slot Machine Key Switch
Brass or zinc alloy housing
Contact & terminal silver, plated
Our vending machine locks, electric instrument locks, and slot machine locks are designed to secure a wide range of applications, including but not limited to garage doors, alarm system, computer case, charging meter, vending machine, control boxes, electric instrument, security system, slot machine, etc.
10000 combinations
SPECIFICATION:
Current Rating: 4A 125VAC, 2A 250VAC
Contact Resistance: 10 Mill-Ohms Max.
Insulation Resistance: 500 Meg-Ohms Min
Dielectric Strength: 1500VAC 1 minute
High-Durability Electric Key Switch for Secure Slot Machine Management
Imagine a Casino Floor Manager responsible for hundreds of Slot Machines in a high-traffic gaming environment. Every time a jackpot is hit or a routine bill clearance is required, a reliable and secure access point is essential to prevent internal fraud and external tampering. The ABA 102304 Slot Machine Key Switch provides the ultimate Locking Solution for these critical tasks. As a professional Lock Manufacturer, we have engineered this Electric Key Switch with a heavy-duty Zinc Alloy body and precision-timed Internal Contacts, ensuring superior Mechanical Reliability through thousands of cycles.
The 102304 Model acts as a vital Security Component for Gaming Terminals, Amusement Machines, and Currency Validators. It facilitates precise Circuit Control and Power Management, allowing operators to safely toggle between service and play modes. For our OEM/ODM partners, ABA offers customizable Keying Options and various Cam Configurations to ensure seamless integration into specialized cabinet hardware. Trust ABA’s Precision Engineering to deliver the Asset Protection and operational security required for the modern gaming industry.
Related Video
RELATED PRODUCT
Gaming Key Switch Lock
The 102300 gaming key switch lock (know as a computer server lock, charging meter lock, or amusement machine lock) is designed to secure a wide range of equipment, including but not limited to garage doors, alarm systems, computer servers, charging meters, vending machines, control boxes, electric instruments, amusement machines, etc.
Features
- Housing with brass or zinc alloy.
- Silver-plated contacts and terminals.
- Over 10000 combinations.
Specifications
- Current Rating: 4A /125VAC, 2A/250VAC.
- Contact Resistance: 10 Milli-Ohms Max.
- Insulation Resistance: 500 Meg-Ohm Min (500VDC).
- Dielectric Strength: 1500 VAC-1 Minute.
Casino Key Switch Lock
Details
The 102301 casino key switch lock (known as a computer case lock, charging meter lock, or casino machine lock) is designed to secure a wide range of equipment, including but not limited to garage doors, alarm systems, computer cases, charging meters, vending machines, control boxes, electric instruments, security systems, casino machines, etc.
Features
- Housing with brass or zinc alloy.
- Silver-plated contacts and terminals.
- Over 10000 combinations.
Spqcifications
- Current Rating: 4A /125VAC, 2A/250VAC.
- Contact Resistance: 10 Milli-Ohms Max.
- Insulation Resistance: 500 Meg-Ohm Min. (500VDC).
- Dielectric Strength: 1500 VAC-1 Minute.
Elevator Key Switch
Housing with zinc alloy
Silver plated contacts and terminals
Our lift locks, elevators locks, and security system locks are designed to secure a wide range of applications, including but not limited to garage doors, alarm system, computer case, charging meter, vending machine, control boxes, electric instrument, security system, elevator, lift, etc.
Over 10000 combination
SPECIFICATIONS:
Current Rating: 4A /125VAC, 2A/250VAC
Contact Resistance: 10 Milli-Ohms Max
Insulation Resistance: 500 Meg-Ohm Min (500VDC)
Dielectric Strength: 1500 VAC-1 Minute
Amusement Key Switch
Zinc alloy housing & barrel
Contact silver plated , brass terminal
Our computer server locks, charging meter locks, and amusement machine locks are designed to secure a wide range of applications, including but not limited to garage doors, alarm system, computer server, charging meter, vending machine, control boxes, electric instrument, amusement machine, etc.
10000 combinations
SPECIFICATION:
Current Rating: 4A 125VAC, 2A 250VAC
Contact Resistance: 10 Milli-Ohms Max.
Insulation Resistance: 500 Meg-Ohms minDielectric Strength: 1500VAC 1 minute
