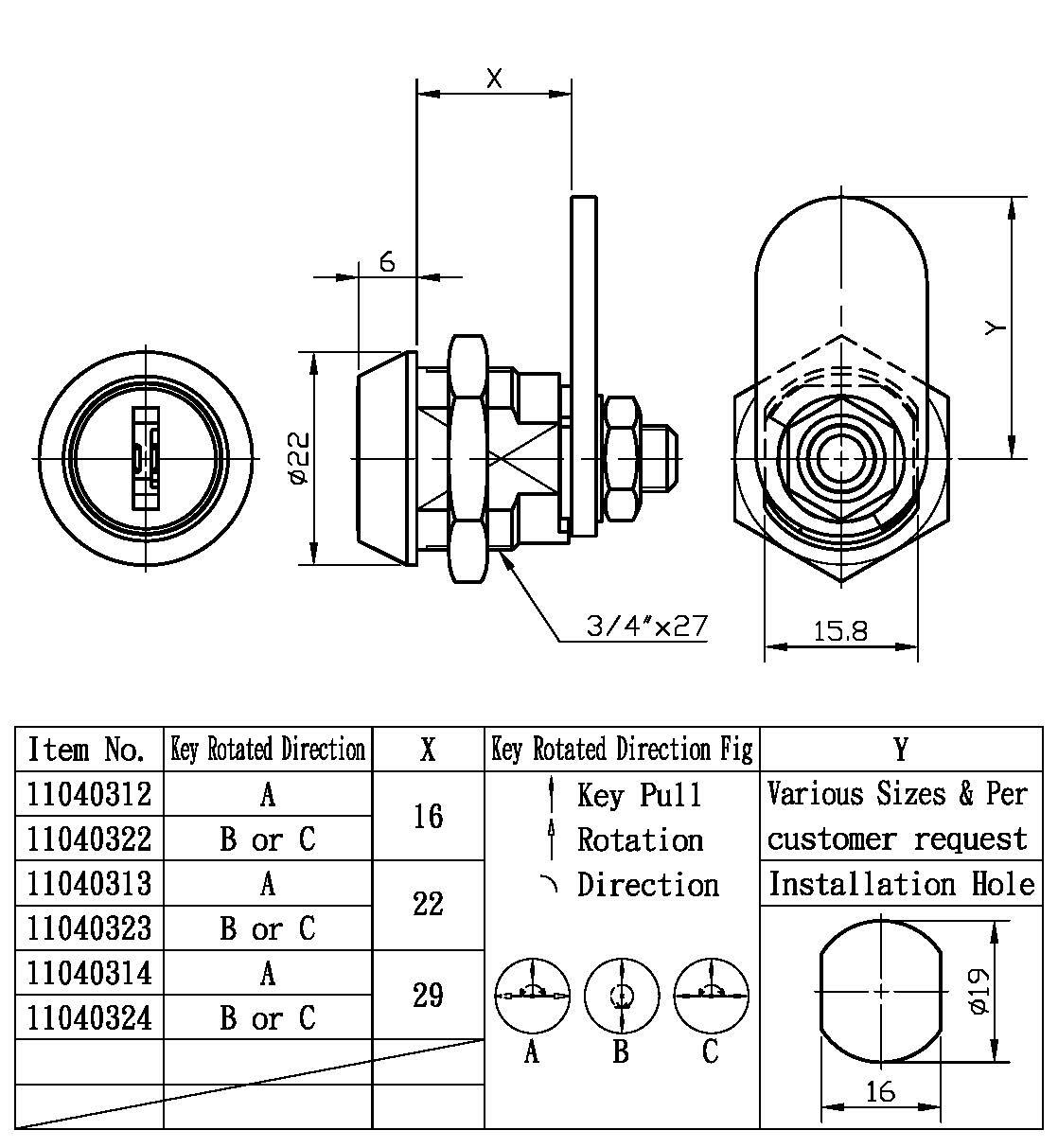

110403

High Security Cam Lock


1. Wafer Barrel
2. Housing & Barrel with zinc zlloy
3. Over 5,000 different key combination codes or key alike
4. End barrel fixed by nut. Nut fixes the cam
5. Optional master key system
6. Used for: Our cabinet locks, furniture locks, and vending machine locks are designed for a wide range of applications. They are used for securing metal and wooden cabinets, storage units, drawers, furniture, any cabinet and box, equipment, as well as vending machines and gaming machines.

Features
1. Same size with ABA another lock 103403
2. Same cutting hole with ABA cam locks (for example: 103403...)
so no need to change the cutting hole on the same application
3. More key codes than the usual wafer flat key locks
4. The key is special, so it is not easy to get copied
5. More Security than the usual wafer flat key locks
6. The key cutting machine is special, so few manufacturers make this kind of key locks right now
So it is not easy to see this kind of key locks in the market right now
7. The inward (inside) key cutting makes the key not easily get hurt if the users put the keys in the bags

The Pinnacle of Mechanical Asset Protection

Imagine a Banking Environment or a Government Office where Secure Cabinets and Confidential Storage units house irreplaceable assets and sensitive data. In these high-stakes scenarios, compromising on lock quality is not an option. The ABA 110403 High Security Cam Lock is specifically engineered to provide the highest level of physical defense. As a premier Lock Manufacturer, we have integrated our advanced Pagoda Lock technology into this model, featuring a unique internal structure that offers exceptional Anti-Picking and Anti-Drilling resistance.

Crafted from heavy-duty Zinc Alloy and reinforced through Precision Engineering, the 110403 Model is built for long-term Mechanical Reliability even in rigorous daily use. It is the definitive Security Component for ATM Machines, High-Value Vending, and Sensitive Equipment Enclosures. For our OEM/ODM partners, we offer sophisticated Key Management Systems and customizable Master Keying to ensure seamless operation while maintaining maximum Asset Protection. Trust ABA's High-Security Locking expertise to safeguard your most critical infrastructure.

Related Video

RELATED PRODUCT

ATM Machine Lock

ATM Machine Lock

1. Top security PAGODA system
2. The end barrel with screw
3. Housing & barrel with zinc alloy
4. Our tooling box locks, cabinet locks, and vending machine locks are designed to secure a wide range of applications, including but not limited to metal and non metal, wooden door, cabinets, boxes, drawers, amusement machine, vending machine, tooling box.
5. Over 10000 Key combinations
6. Accessory: nut & cam (cam "Y" per customer request, as for reference)

Master Key Cam Lock

Master Key Cam Lock



1. The end barrel with screw
2. The end barrel with nut
3. Housing & barrel with brass or zinc alloy or SUS 303(optional)
4. Our amusement machine locks, vending machine locks, and cabinet locks are designed to secure a wide range of applications, including but not limited to metal and non metal wooden door, cabinets, boxes, drawers, tooling box, amusement machine, vending machine.
5. 10000 Key combinations
6. Accessory: nut & cam (cam "Y" per customer request, as for reference)
7. Components 「SUS303 material is available for inquiry」
Tubular Cam Lock

Tubular Cam Lock


1. The end barrel with screw and nut
2. Housing & barrel with brass or zinc alloy or SUS 303(optional)
3. 10,000 Key combinations
4. Accessory: nut & cam (cam "A" per customer request, as for reference)
5. Components 「SUS303 material is available for inquiry」
6. Our cabinet locks, amusement machine locks, and vending machine locks are designed to secure a wide range of applications, including but not limited to metal and non metal, wooden door, cabinets, boxes, drawers, tooling box, amusement machine, vending machine.
Cam Lock with Dust Shutter

Cam Lock with Dust Shutter


1. Superior wafer lock
2. Housing & Barrel made of Zinc Alloy
3. Over 200 Key combinations or key alike
4. Our gas machine locks, machine and equipment locks, parking device locks are designed to secure a wide range of applications, including but not limited to metal and wooden cabinet, vault and safe, locker, machine, equipment, tooling box, gas machine, machine and equipment, parking device, power distribution cabinet.
5. Accessory: nut & cam (cam "A" upon customer request)
103409 zinc alloy cam lock

Zinc Alloy Cam Lock

Details

The 103409 zinc alloy cam lock (known as a gas marking machine lock, medical cart lock, or parking meter lock) is designed to secure a wide range of equipment, including but not limited to metal and non-metal wooden doors, cabinets, boxes, tooling boxes, drawers, marking machines, medical carts, parking meters, and POS machines.

Features

  • Φ19.
  • Superior wafer lock barrel with flat keys.
  • Housing & barrel with zinc alloy.
  • Outer housing size as ABA existing products #3403 M size.
  • Over 800 key combinations.
  • Interchangeable Core.
  • Master key system is available.
ARV-C1650 single-sided wafer lock

Single Sided Wafer Lock

Details

  • Φ19.
  • Material: Zinc alloy.
  • Finish: Bright chrome (Custom finishes available upon request).
  • Keying: 5-wafer, single-sided, offering up to 200 key combinations.
  • Master Keying: Master key function available.
  • Cam Options: Wide range of cam sizes and rotations for customer selection.
  • Cam Attachment: Screw-type.
  • Mounting: Hex nut or clip.
