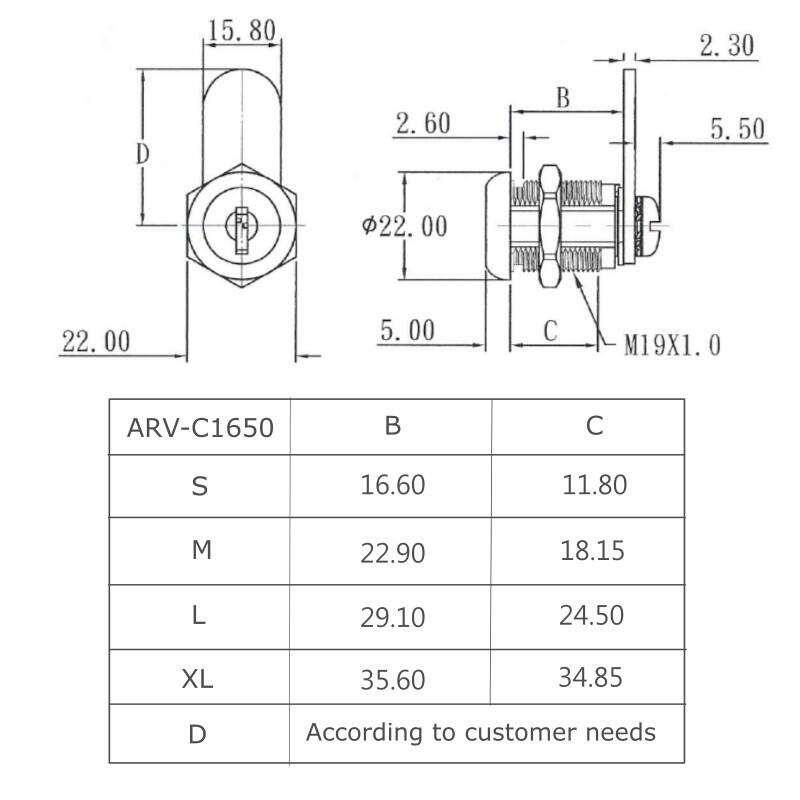

ARV-C1650

Single Sided Wafer Lock

Details

  • Φ19.
  • Material: Zinc alloy.
  • Finish: Bright chrome (Custom finishes available upon request).
  • Keying: 5-wafer, single-sided, offering up to 200 key combinations.
  • Master Keying: Master key function available.
  • Cam Options: Wide range of cam sizes and rotations for customer selection.
  • Cam Attachment: Screw-type.
  • Mounting: Hex nut or clip.

Efficiency and Reliability for Modern Storage Solutions

Imagine an expansive Co-working Space or a Smart Office where hundreds of Personal Lockers and Mobile Pedestals require daily security. In such high-traffic environments, a locking mechanism must be simple to operate, easy to maintain, and cost-effective for large-scale installation. The ABA ARV-C1650 Single Sided Wafer Lock is specifically designed to meet these needs. As a professional Lock Manufacturer, we have optimized this Zinc Alloy lock to provide smooth rotation and consistent Mechanical Reliability for high-volume furniture production.

The ARV-C1650 Model utilizes a precision Disc Tumbler Mechanism, making it an essential Security Component for Mailboxes, Key Cabinets, and Office Furniture. Its Single Sided Wafer design allows for a compact lock body, perfect for installations with limited space. For our OEM/ODM partners, ABA provides various Cam Configurations and a functional Master Key System to ensure streamlined facility management while maintaining reliable Asset Protection. Trust ABA’s Precision Engineering to deliver the essential Locking Solutions your commercial hardware projects demand.

RELATED PRODUCT

Miniature High Safety Cam Lock

Miniature High Safety Cam Lock

Details

  • Top security PAGODA system
  • Zinc alloy housing & barrel
  • Our tooling box locks, drawer locks, door locks, and cabinet locks are designed to secure a wide range of applications, including but not limited to metal and non-metal wooden doors, cabinets, boxes, tooling boxes, and drawers.
  • 500 key combinations
  • Accessory: nut & cam (cam "A" per customer request, as for reference)
Top Security Cam Lock

Top Security Cam Lock



1. Top security dual systems PAGODA+DIMPLE
2. Housing & Barrel with Brass Alloy
3. Over 3,000 key combinations based on key in both positions
Over 90,000 key combinations based on key in one position
4. Almost the same spec. as Pagoda Cam Lock 101481, except the lock head is a little bigger
5. The end barrel with nut fitting (Cam is affixed by nut), Cam (various specs is available)
6. Our atm machine locks,gun cabinet locks,cabinet locks are designed to secure a wide range of applications, including but not limited to locker and security boxes, atm machine, metal and wooden cabinet, storage, gun cabinet, drawer, furniture, any cabinet and box.
Cash Box Lock

Cash Box Lock



1. Worldwide Patents Protected
2. Top security assurance. Anti-picking from any picking tools
3. The end barrel with nut.
4. Housing with harden steel & Barrel with nickel steel alloy
5. Our gambling machine locks, vending machine locks, and treasury locks are designed to secure a wide range of applications, including but not limited to metal and non metal wooden door, cabinets, boxes, drawers, gambling machine, vending machine, tooling box, treasury.
6. Over 60,000 key combinations
7. Accessory: Nut & Cam (cam"A"per customer request, as for reference)
Master Key Cam Lock

Master Key Cam Lock



1. The end barrel with screw
2. The end barrel with nut
3. Housing & barrel with brass or zinc alloy or SUS 303(optional)
4. Our amusement machine locks, vending machine locks, and cabinet locks are designed to secure a wide range of applications, including but not limited to metal and non metal wooden door, cabinets, boxes, drawers, tooling box, amusement machine, vending machine.
5. 10000 Key combinations
6. Accessory: nut & cam (cam "Y" per customer request, as for reference)
7. Components 「SUS303 material is available for inquiry」
103499 dustproof cam lock

Dustproof Cam Lock

Details

The 103499 dustproof cam lock (known as switch gear box lock, gaming machine lock, coin operated machine lock) is designed to secure a wide range of equipment, including but not limited to metal and wooden cabinets, lockers, machines and equipment, tooling boxes, sports equipment, switch gear box, gaming machine, coin operated machine.

Features

  • Φ19.
  • Superior wafer lock.
  • Housing & Barrel made of Zinc Alloy.
  • Over 150 Key combinations or key alike.
  • Accessory: nut & cam (cam "A" upon customer request).
Flat Key Wafter Cam Lock

Flat Key Wafter Cam Lock

Details

The 103496 flat key wafter cam lock (known as public pay phone lock, scroll door lock, and server cabinet lock) is designed to secure a wide range of equipment, including but not limited to metal and non-metal, wooden doors, cabinets, boxes, tooling boxes, drawers, furniture, public pay phones, scroll doors, and server cabinets.

Features

  • Φ19.
  • Housing & barrel with zinc alloy.
  • Over 200 Key combinations.
  • Accessory: Nut & cam (cam "A" upon customer request).
