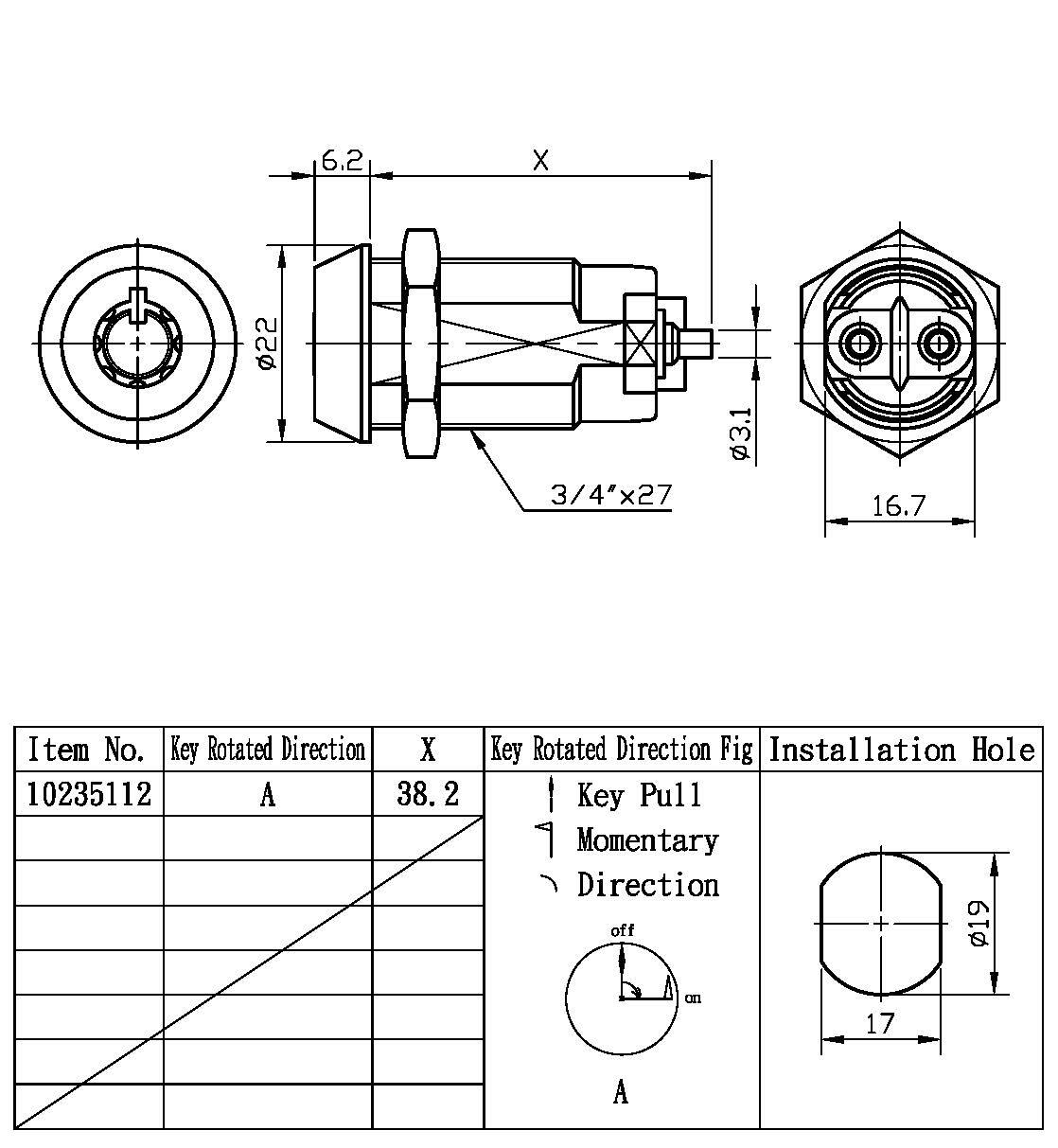

102351
Amusement Key Switch
DESCRIPTION:
Zinc alloy housing & barrel
Contact silver plated , brass terminal
Our computer server locks, charging meter locks, and amusement machine locks are designed to secure a wide range of applications, including but not limited to garage doors, alarm system, computer server, charging meter, vending machine, control boxes, electric instrument, amusement machine, etc.
10000 combinations
SPECIFICATION:
Current Rating: 4A 125VAC, 2A 250VAC
Contact Resistance: 10 Milli-Ohms Max.
Insulation Resistance: 500 Meg-Ohms minDielectric Strength: 1500VAC 1 minute
Zinc alloy housing & barrel
Contact silver plated , brass terminal
Our computer server locks, charging meter locks, and amusement machine locks are designed to secure a wide range of applications, including but not limited to garage doors, alarm system, computer server, charging meter, vending machine, control boxes, electric instrument, amusement machine, etc.
10000 combinations
SPECIFICATION:
Current Rating: 4A 125VAC, 2A 250VAC
Contact Resistance: 10 Milli-Ohms Max.
Insulation Resistance: 500 Meg-Ohms minDielectric Strength: 1500VAC 1 minute
